Remote Radiators
Young Touchstone Cooling for Prime & Standby Power
CH Bull provides Young Touchstone remote radiators for gas and diesel generators used in prime and standby power applications.
Pre-engineered radiator components can be configured in thousands of combinations to meet specific cooling requirements, with solutions available from 300 kW to 3000 kW.
Compare Remote Radiator Configurations
Young Touchstone remote radiators are available in vertical-core, horizontal-core, and genset-mounted configurations.

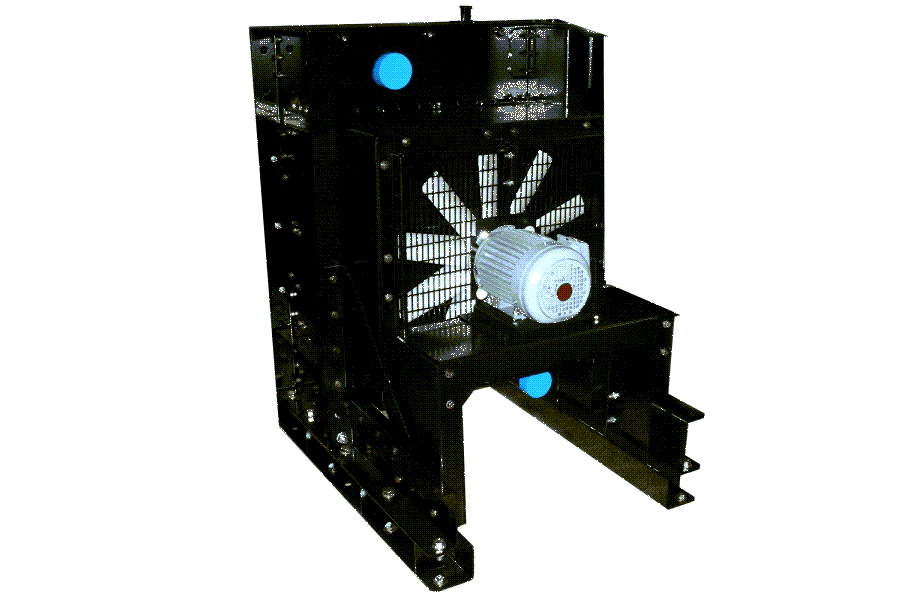

Vertical Core Radiators
Models: VM & VB
Best For: Remote-mounted applications requiring a vertical core configuration.
Highlights:
- Vertical core design
- Remote-mounted configuration
- Outdoor installation adjacent to generator
- Custom sizing available

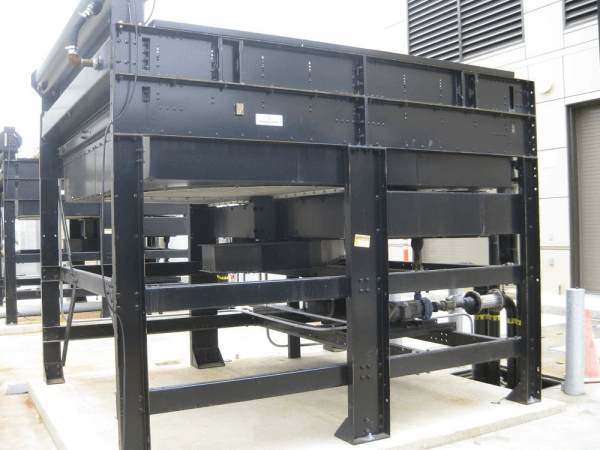

Horizontal Core Radiators
Models: HM & HB
Best For: Remote-mounted applications requiring a horizontal core configuration.
Highlights:
- Horizontal core design
- Remote-mounted configuration
- Roof or outdoor installation
- Custom sizing available
Genset-Mounted Radiators
Models: FR & FE
Best For: Applications requiring the radiator to be mounted directly with the generator.
Highlights:
- FR fan-on-radiator designs
- FE fan-on-engine designs
- Mounts directly on generator skid
- Available across the 300–3000 kW range
Not sure which configuration fits your application?
CH Bull can help configure the radiator required for your heat load and cooling requirements.
Young Touchstone Radiator Construction
Young Touchstone remote radiator cores are designed for demanding applications involving thermal stress, shock and vibration, thermal cycling, and operating pressures up to 60 PSI.
FLAT-ROUND Tubing
Combines airflow and heat transfer with durable mechanical bonding.
Mechanical Bonding
Roller-expanded joints create a durable tube-to-header connection.
No-Solder Connections
Tube-to-header joints eliminate solder, braze, and rubber grommets.
Steel Header Plate
Half-inch steel plate with a machined O-ring tank seal.
Heavy-Wall Brass Tubing
Provides strength and resistance to damage.
Welded-Seam Tubing
Eliminates soldered lock seams in the tubing.
Core Options
DS1 Cores
Best For: Prime power and CHP applications.
Highlights:
- Flat copper plate fins
- Brass tubes
- Fins soldered to the tubes
- Designed for maximum core strength
DS2 Cores
Best For: Standby applications.
Highlights:
- Louvered serpentine fins
- Brass tubes
- CuproBraze technology
- Designed for highly efficient cooling
- Greater thermal conductivity and corrosion resistance
Every radiator is pressure tested underwater after assembly, with each test documented. Horizontal and vertical remote radiators are also certified for seismic applications, including IBC 2000, 2003, 2006, and 2009.
Custom Remote Radiator Solutions
CH Bull offers Young Touchstone remote radiators in a range of sizes, configurations, and voltage levels, including custom systems sized to specific heat loads. Solutions are available for heat loads as high as 110,000 BTUs per minute.
Available Options:
- Electric motors
- VFDs for variable-speed motor control
- Galvanized frames
- Heresite or epoxy coatings for radiator cores
- Level switches
- Surge tanks
- Custom sizing based on heat load
CH Bull can develop a custom remote radiator sized to your cooling requirements.
Common Questions
Find the Right Remote Radiator
CH Bull can help configure a Young Touchstone remote radiator based on your heat load and cooling requirements.
